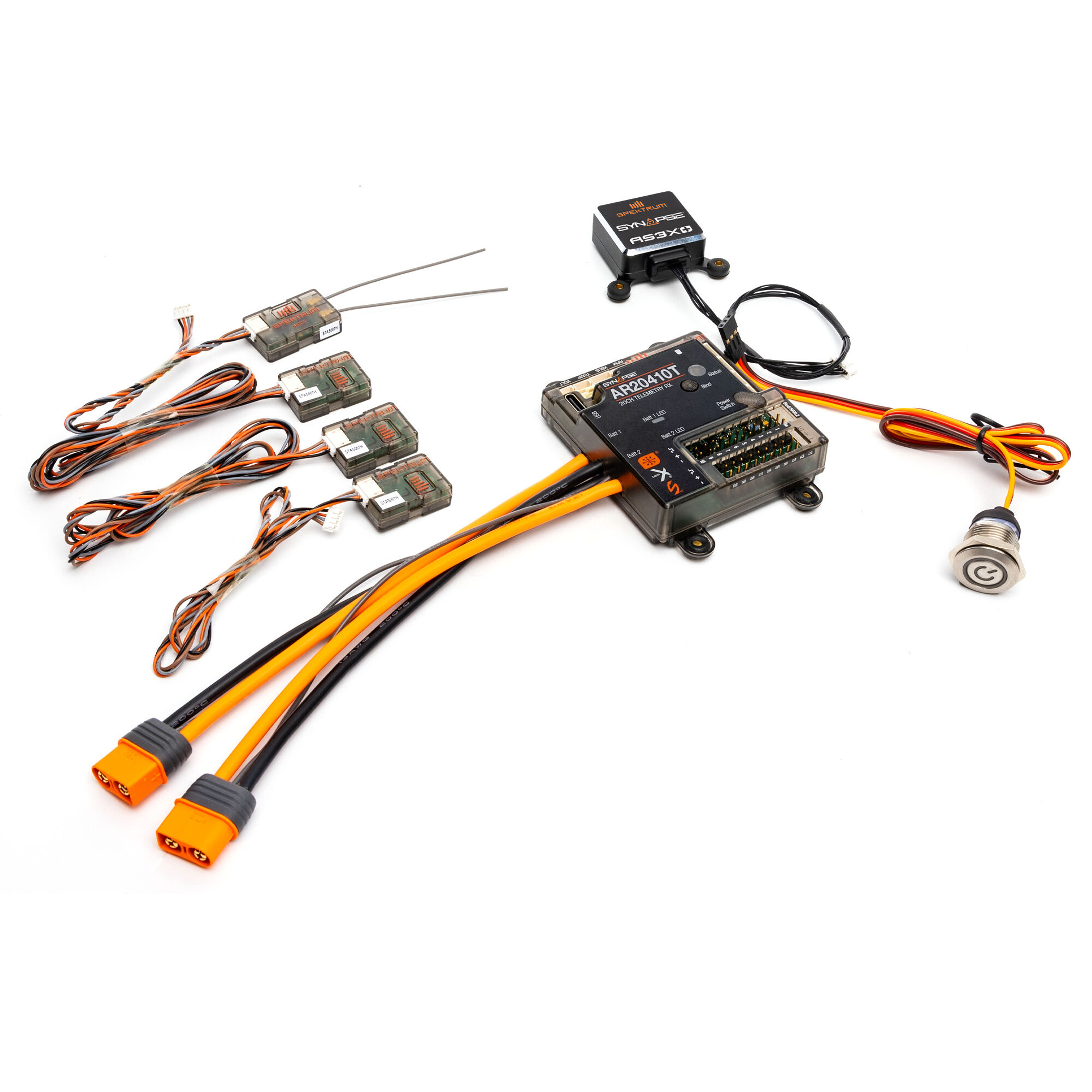

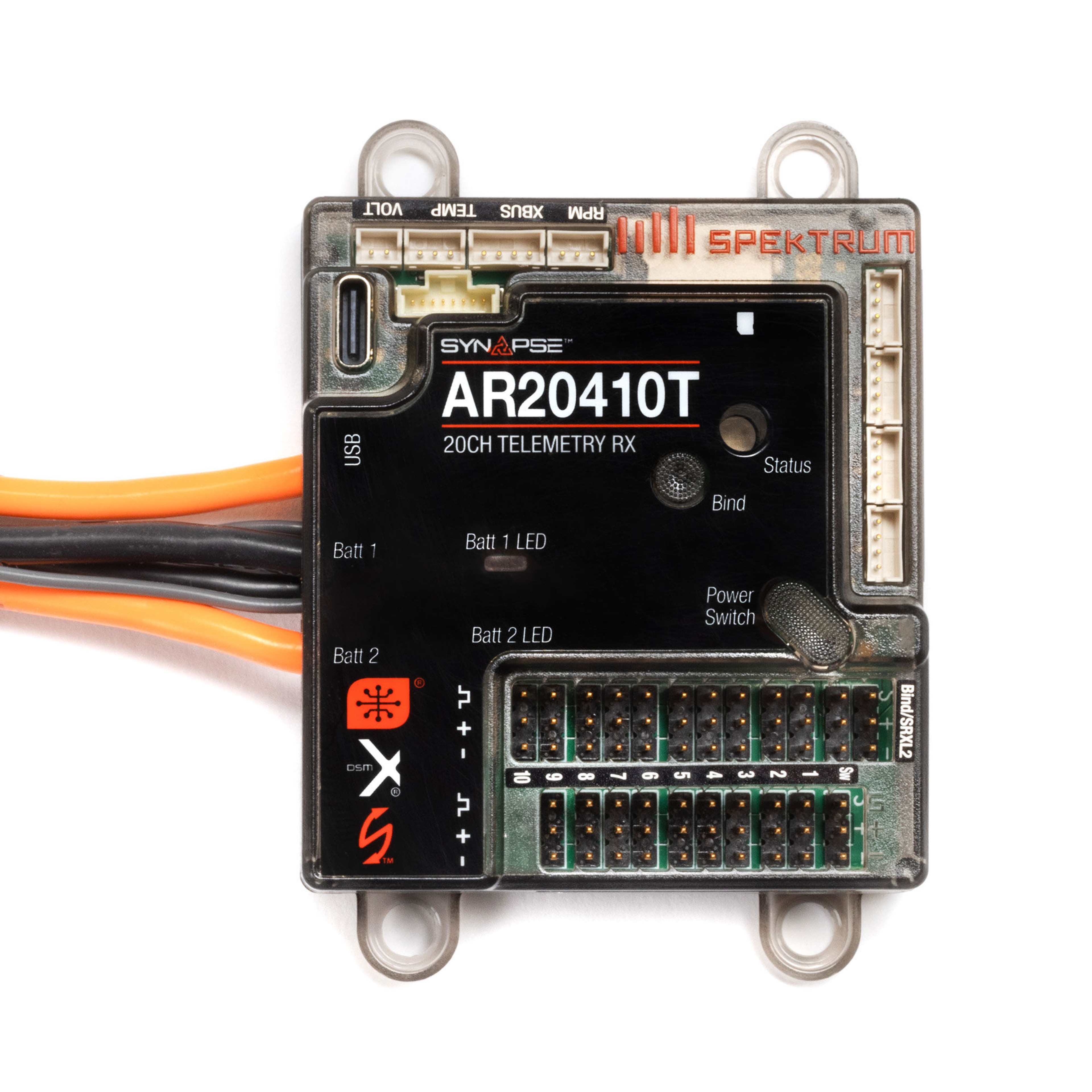

Spektrum AR20410T 20-Channel PowerSafe Telemetry Receiver Features

• Patented PowerSafe™ redundancy system with dual battery input ports with IC3 connectors. Perfect for power-hungry aircraft and high current servo applications drawing up to 35A (50A max burst)
• Innovative power management system designed with sleep mode allowing pilots to remotely power on/off from the transmitter
• Fast boot recovery technology allows the gyro system to be rebooted in flight upon any electrostatic discharge or power interruption, providing pilot control within milliseconds using a saved stabilization calibration
• Regenerative servo support for any number of servos
• Forward programming for easy adjustments to failsafe settings, servo frame rate settings, AS3X+ settings, and more
• USB-C port for easy product registration and firmware updates
• 12V capable for use with 12-volt servo applications (must be activated via Forward Programming)
• Integrated battery capacity monitor automatically reports the battery capacity used during flight and can reset automatically when fully charged batteries are installed
• Integrated Black Box telemetry log saves all telemetry data automatically when a Micro SD card is installed (Micro SD card not included)
• Integrated status LED provides helpful information during start-up, including warnings and mode indicators
• SRXL2 connectivity for easy, one-wire connection to supported devices
• Ready to use with Spektrum Smart ESC for one-wire telemetry data without the need for modules, links, and wires
• Receiver pack energy, voltage sensor, and flight log telemetry data available without the need for additional sensors
• Temperature, imbalance, cycles, and cell voltage telemetry data available when using Smart batteries
• When using an SPM4651T remote receiver, there is full-range telemetry with an integrated barometer providing altitude and vario telemetry without additional modules
• Included Momentary Pushbutton allows booting or shutting down the system. However, shutting down the system requires a specific press-and-hold pattern to prevent accidental shutdowns in case the button fails or disconnects. The switch itself must not be substituted. Additionally, there is a power switch on the receiver itself that can be used instead
• Rubber grommet hard mounts and minimalistic labeling help produce the cleanest model setups
• Capable of high-speed 11ms frame rates. It can be boosted to 5.5ms, if the servo supports it, for improved stabilization when using Synapse
• Binding is easier than ever, with four options to initiate the bind process
• Integrated telemetry with built-in ports for RPM, flight pack voltage, temperature sensors, and X-bus for telemetry sensor expansion
• Compatible with new Synapse AS3X+ / SAFE Flight Stabilization Module (SPMAS6000)
• Compatible with all Spektrum DSMX transmitters
• Not compatible with DSM2 AIRMOD JR Module (SPMMSJR720)

Spektrum™ Synapse™ Flight Stabilization Module Features

• The all-new AS3X+ stabilization algorithm provides the ultimate in-flight performance and feel
• 20 stabilized outputs with increased sensor accuracy and data rate
• Thrust vector and canard support with Spektrum’s new multi-gyro system (up to four independent gyro systems in one device)
• Intuitive forward programming makes Synapse the easiest system to set up without the need for any external device
• Machined aluminum and anodized case housing with three grommeted hard mounts
• Gyro sensor is encased in sound and vibration reduction insulation designed for turbine applications
• New parameters and new menus with forward programming
• New Internally mounted locking cable design prevents any possible in-flight disconnection
