Multiplex Twin Battery Safety Switch Pro, M6 Connector
SKU: MPX1-01747
Loading...
The motto when developing the Safety Switch PRO was to keep it simple. No PC or other tools are required: buy, install, fly, and done. The Safety Switch PRO is an extremely reliable and safe power supply for your model.
- High-voltage power supply (input voltage = output voltage) SMD technology, low-wear, vibration-resistant
- High-quality gold-plated connector systems and large cable cross-sections
- High continuous current carrying capacity thanks to large-area cooling via the milled aluminium housing
- Low power loss thanks to "ideal" diodes simulated by FET
- Safe battery connection with MPX M6 connector and safety clips
- Compact construction and elegant design
- Two receiver connection cables for twice the cable cross-section and twice the number of contacts with SAFETY-SWITCH PRO
- MPX M6 high-current connection with SAFETY-SWITCH PRO TwinBatt (M6) for direct connection to the MULTIPLEX receivers RX-9/12/16-DR per M-LINK or other receivers established on the market with M6 input
- Integrated battery switch with SAFETY-SWITCH PRO TwinBatt. The batteries are discharged evenly at the same voltage level.
- If one battery fails, the second battery alone takes over the receiver power supply
- Switch connection socket for free choice of your MPX switch (Magnetic safety switch / Micro safety switch)
- LED status display on the housing

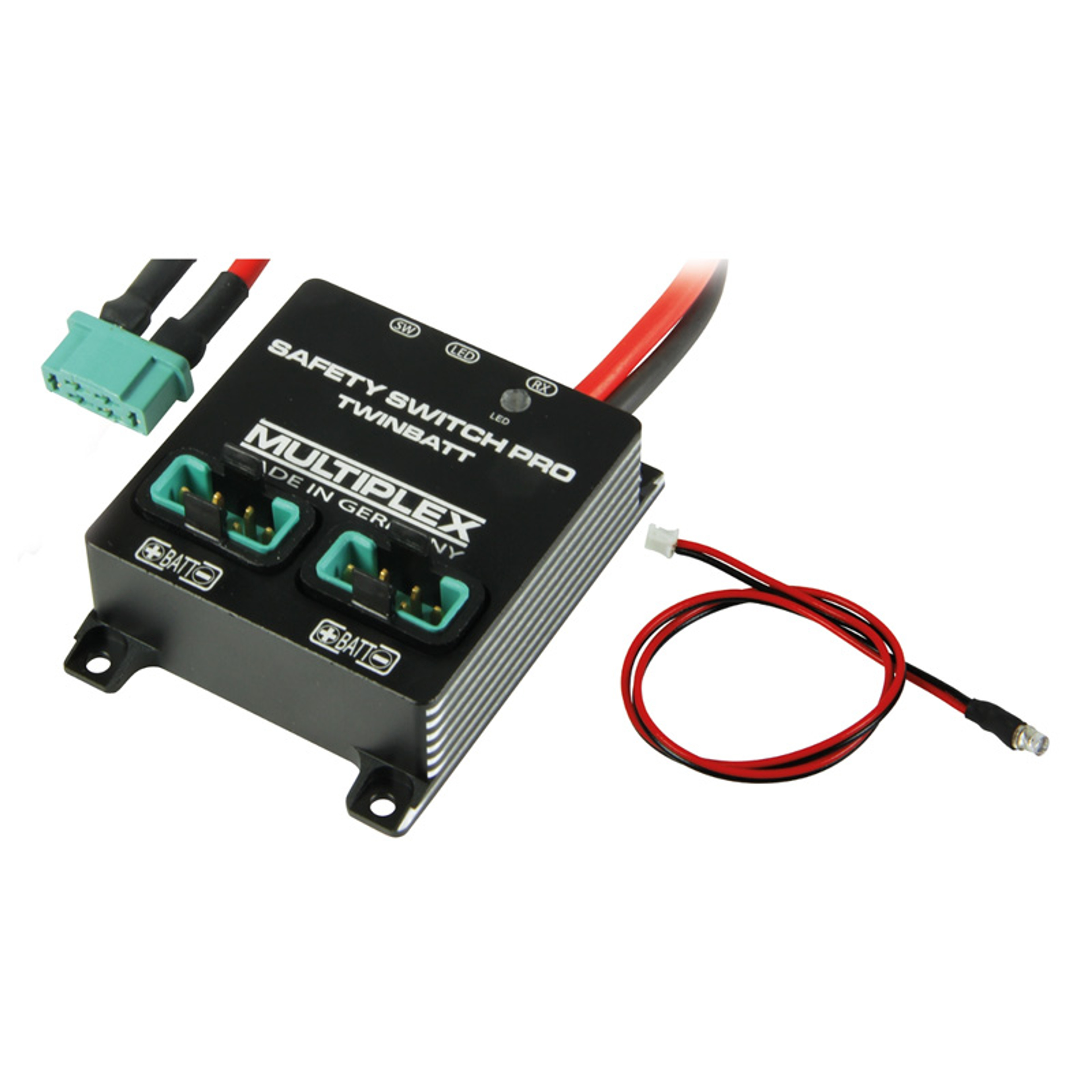

- Additional plug-in LED cable with a 3mm flat-head LED to display the switching status
