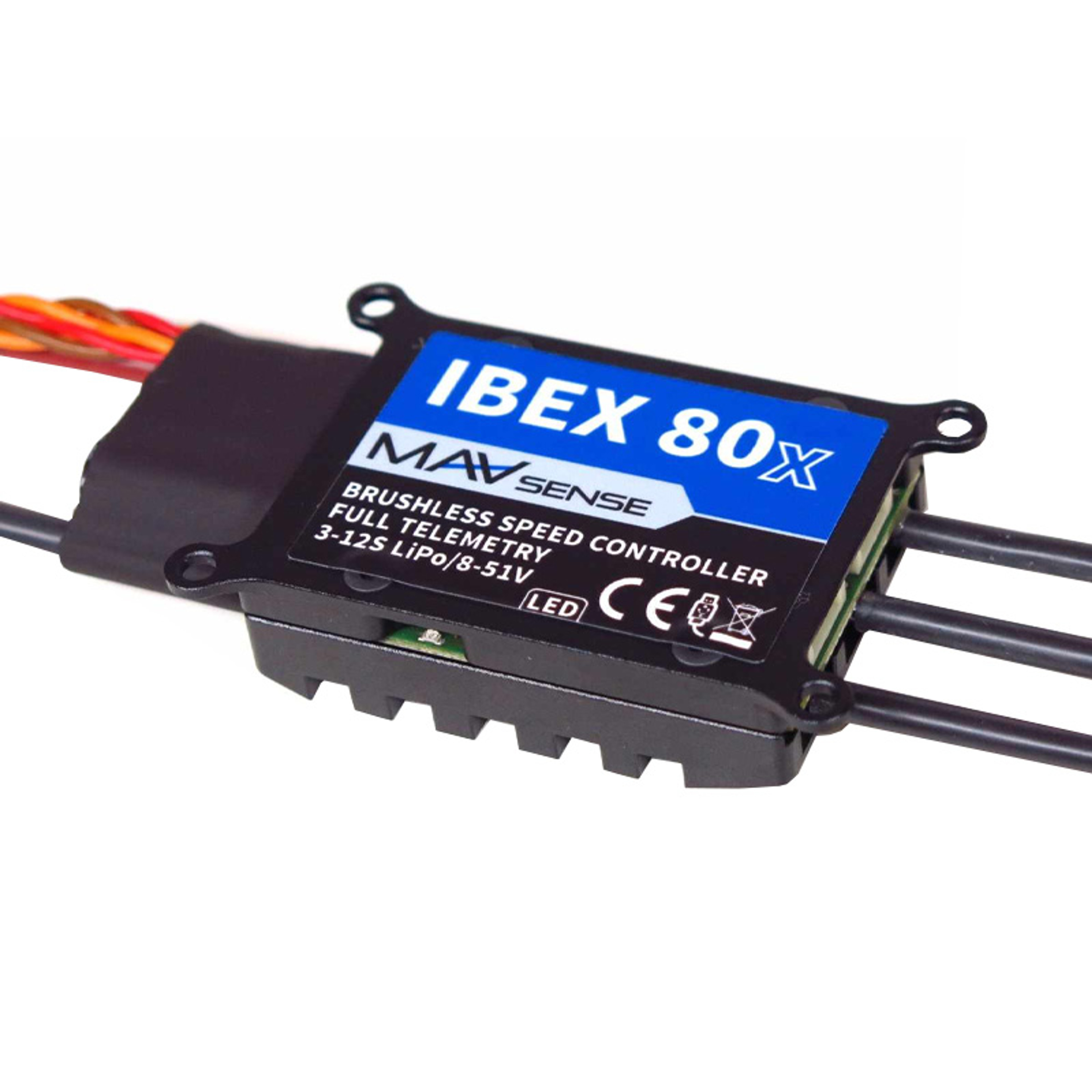

Mav Sense IBEX 80A 12S Telemetry OPTO ESC
SKU: MAV-IBEX80X
Loading...
High-power speed controller for BLDC motors offers continuous current up to 80A at a voltage of up to 51V (12S LiPo). Using a special firmware, we offer the optional starter or starter-generator mode. The IBEX 80X has a completely redesigned all-metal body for the best possible heat dissipation, robustness and reliability. It offers the option of installing an optional fan with dimensions of 30x30mm.
- Small dimensions combined with high power motor control.
- Overand undervoltage protection, overtemperature protection, motor-stall protection.
- Configurable current limiter.
- Optically isolated throttle input.
- Safety shutdown when the throttle impulse is lost.
- Configurable acceleration, timing, electromagnetic brake etc.
- Low acoustic noise due to high frequency switching.
- Automatic telemetry detection: Duplex EX, Hott, MSB, S.Bus2. Alternative firmware with Spektrum SRXL2 telemetry support.
- Telemetry (RC system dependent): voltage, current, power, capacity, temperature, RPM, energy.
- Telemetry min/max values are logged.
- Configuration through the transmitter or external terminal (JETIBOX/SMART-BOX).
- Firmware updates via USB interfaceusing the MAV Manager software.
- Languages: CZ/DE/EN/FR/IT.
