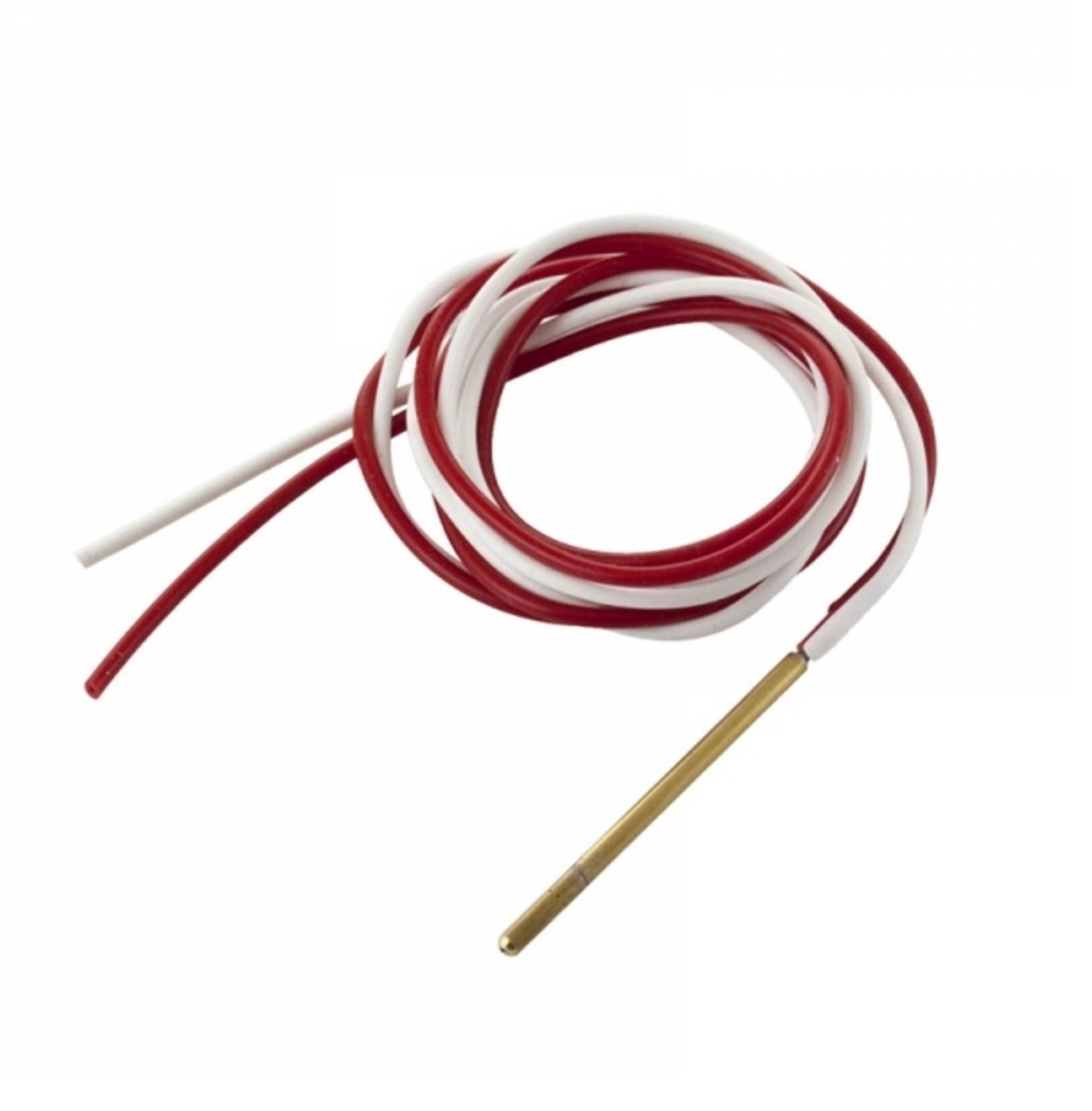

Pitot Tube - A part of the MSpeed sensor is a miniature classic Pitot tube with a diameter of 3 mm, length 55 mm and 3g of weight. The front hole with the diameter of 0.8mm measures the dynamic pressure and is connected to the red hose. Eight side holes are a 0.2mm diameter and measure static pressure. At the end of the tube, two brass tubes with 1 mm diameter are connected by means of soldering. These are for connecting two silicon hoses which goes to MSpeed sensor.
