Jeti Model Central Box 320
SKU: J-CB-320
Loading...

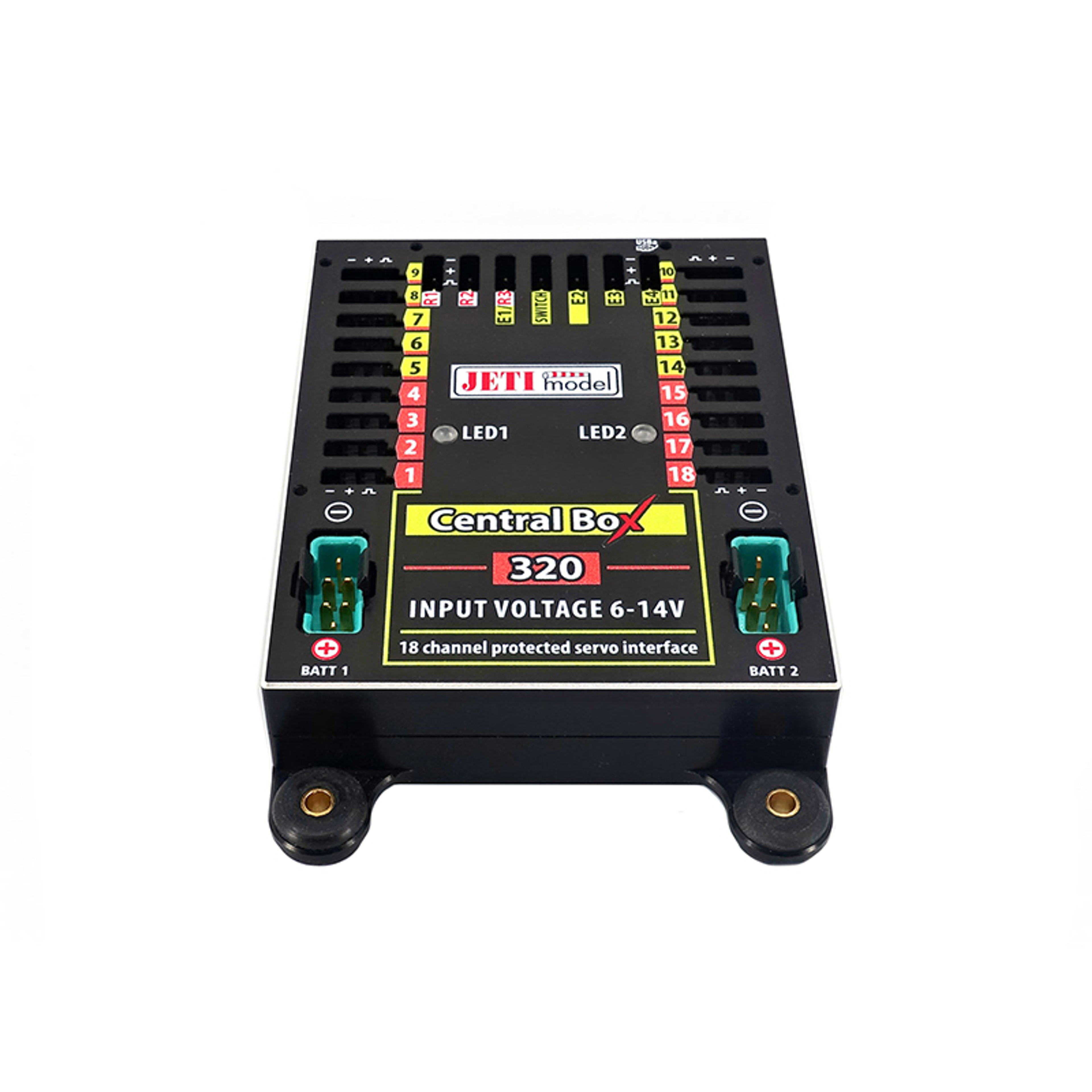

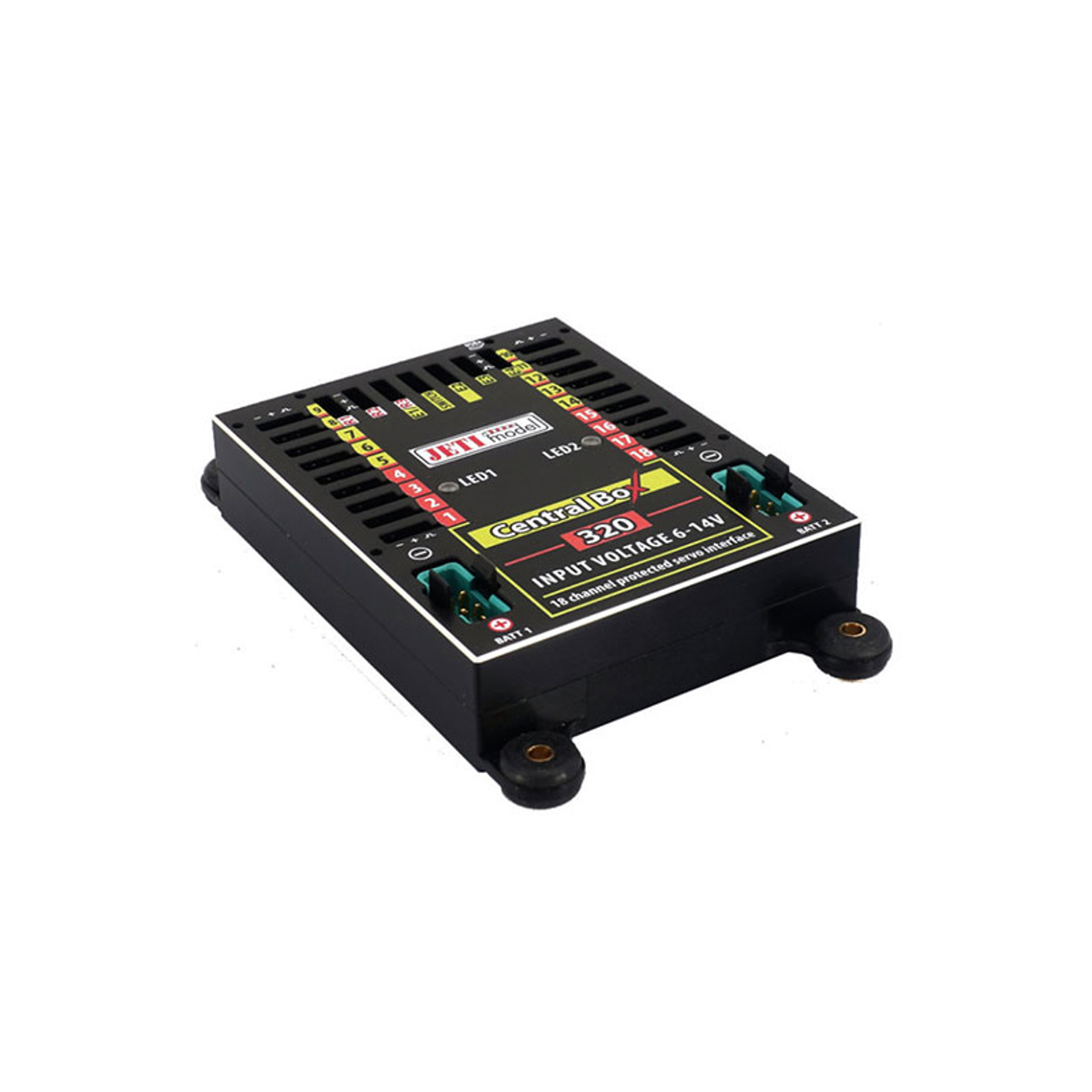

The Jeti Central Box 320 is a fully programmable switchboard with two (2) independent, stabilized power inputs with a single voltage regulator (20A Continues/80A Peak) designed for complete power and signal management of servos with great emphasis on safety.
- Adjustable powerful BEC for voltage stabilization (connection of standard or HV servos)
- Overload protection on each channel (8 outputs for high-torque servos and 10 outputs for standard servos)
- DITEX servo telemetry support
- Possibility to connect up to 3 receivers with serial communication
- Built-in Expander function with the possibility of independent connection of up to four JETI EX sensors
- Input for magnetic switch or RC switch
- 2 x MPX battery input connectors
- 100Hz mode of servo outputs (10ms period)
- EX telemetry support (measurement of voltage, current, capacity, temperature, etc.)
- Easy settings changes via DC/DS transmitter (Device explorer)

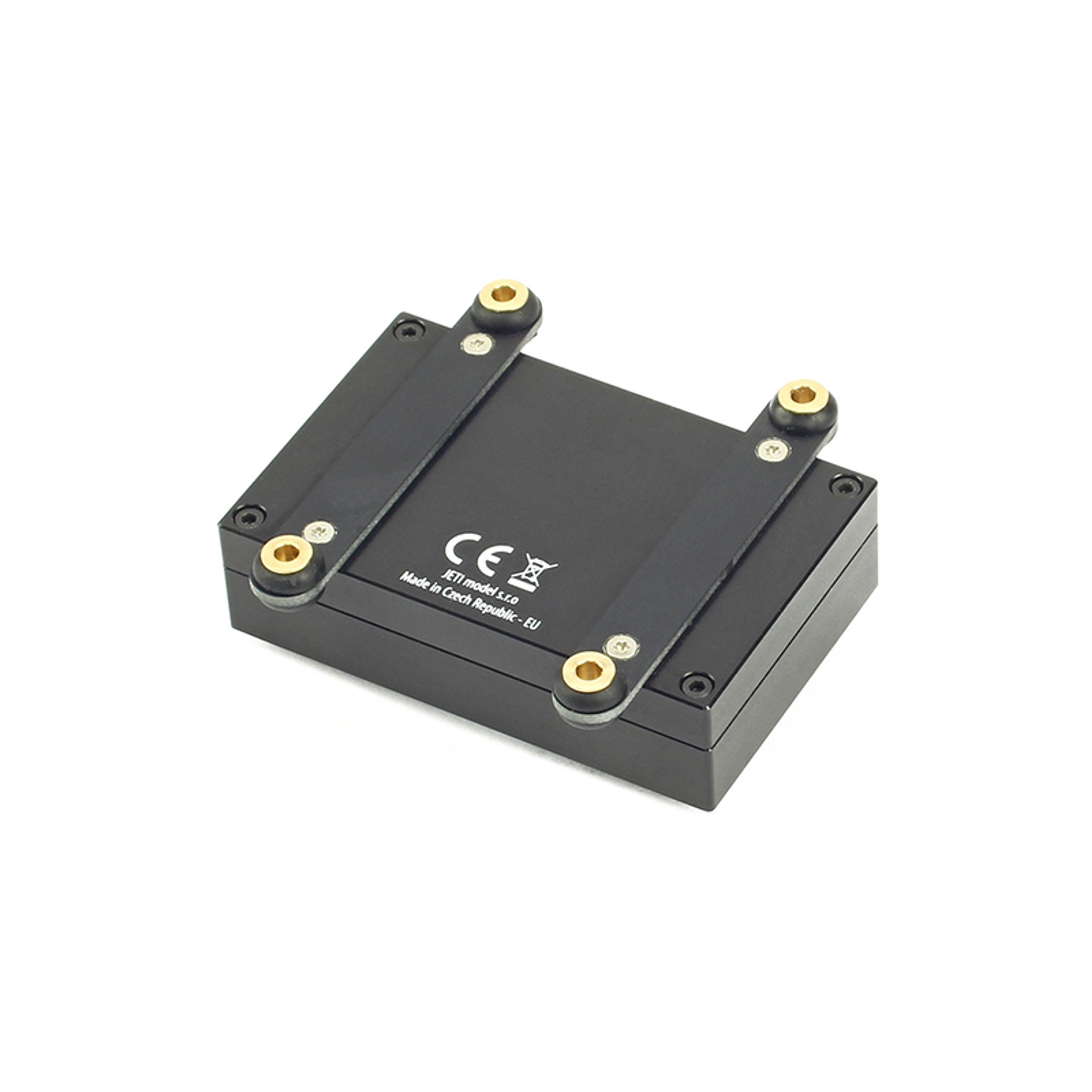

- Robust metal construction with mounting holes
- Easy settings changes via DC/DS transmitter
- Firmware updates by user
- Suitable for use with standard or high voltage (HV) servos
- Compact size for easy installation
- Each output is individually configurable (channel assignment, trim, reverse, ATV)
