Jeti Model Central Box 310
SKU: J-CB-310
Loading...

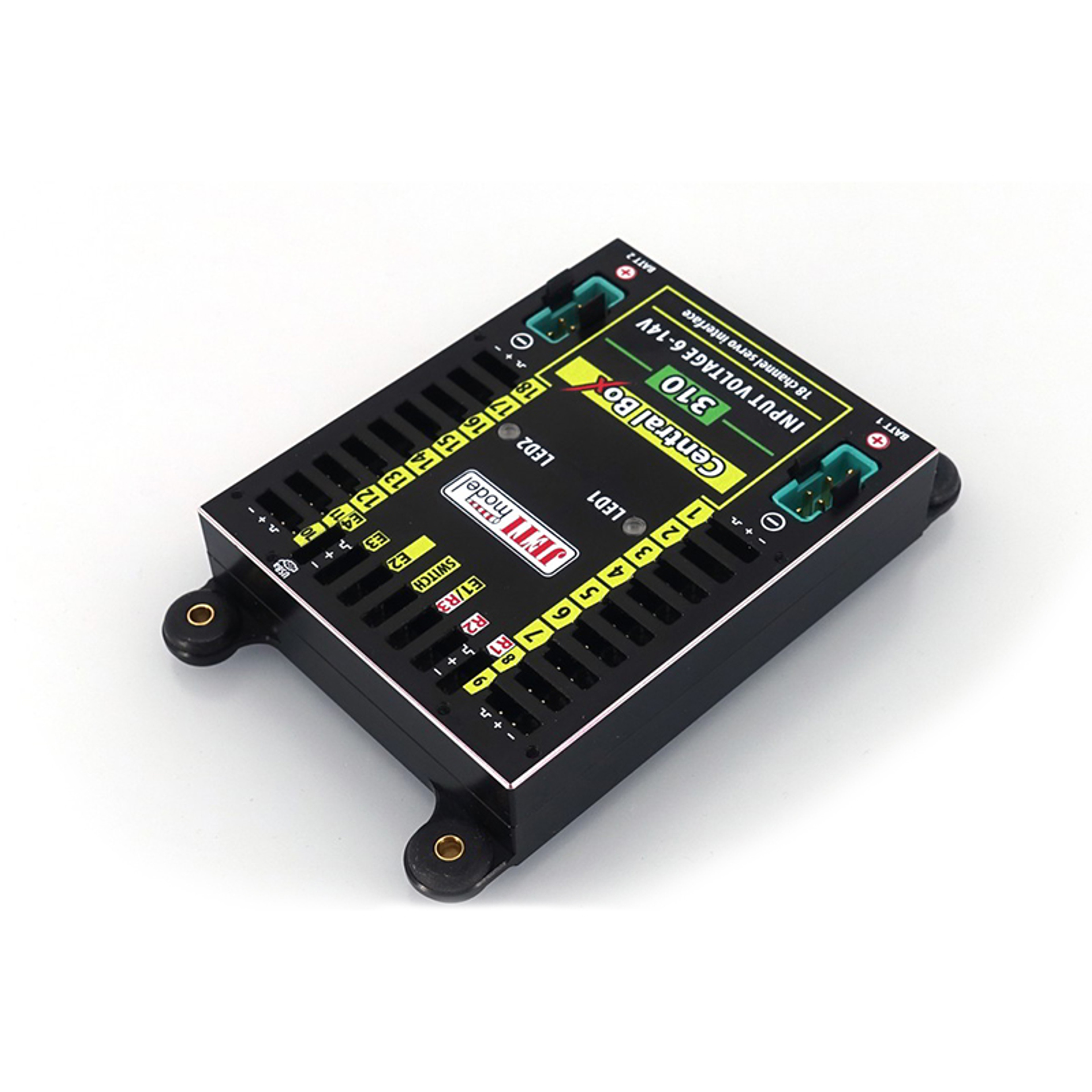

The Central Box is a switchboard designed for the complete management of servos in a model with an emphasis on safety. The Central Box 310 offers maximal unreduced power for each servo (servo outputs do not have overload protection).
- Adjustable powerful BEC for voltage stabilization (connection of standard or HV servos)
- DITEX servo telemetry support
- Possibility to connect up to 3 receivers with serial communication
- Built-in Expander function with the possibility of independent connection of up to four JETI EX sensors
- Input for magnetic switch or RC switch
- Power supply batteries connected via MPX connector
- 100Hz mode of servo outputs (10ms period)
- EX telemetry support (measurement of voltage, current, capacity, temperature, etc.)
- Easy settings changes via DC/DS transmitter (Device explorer)
- Robust metal construction with mounting holes
