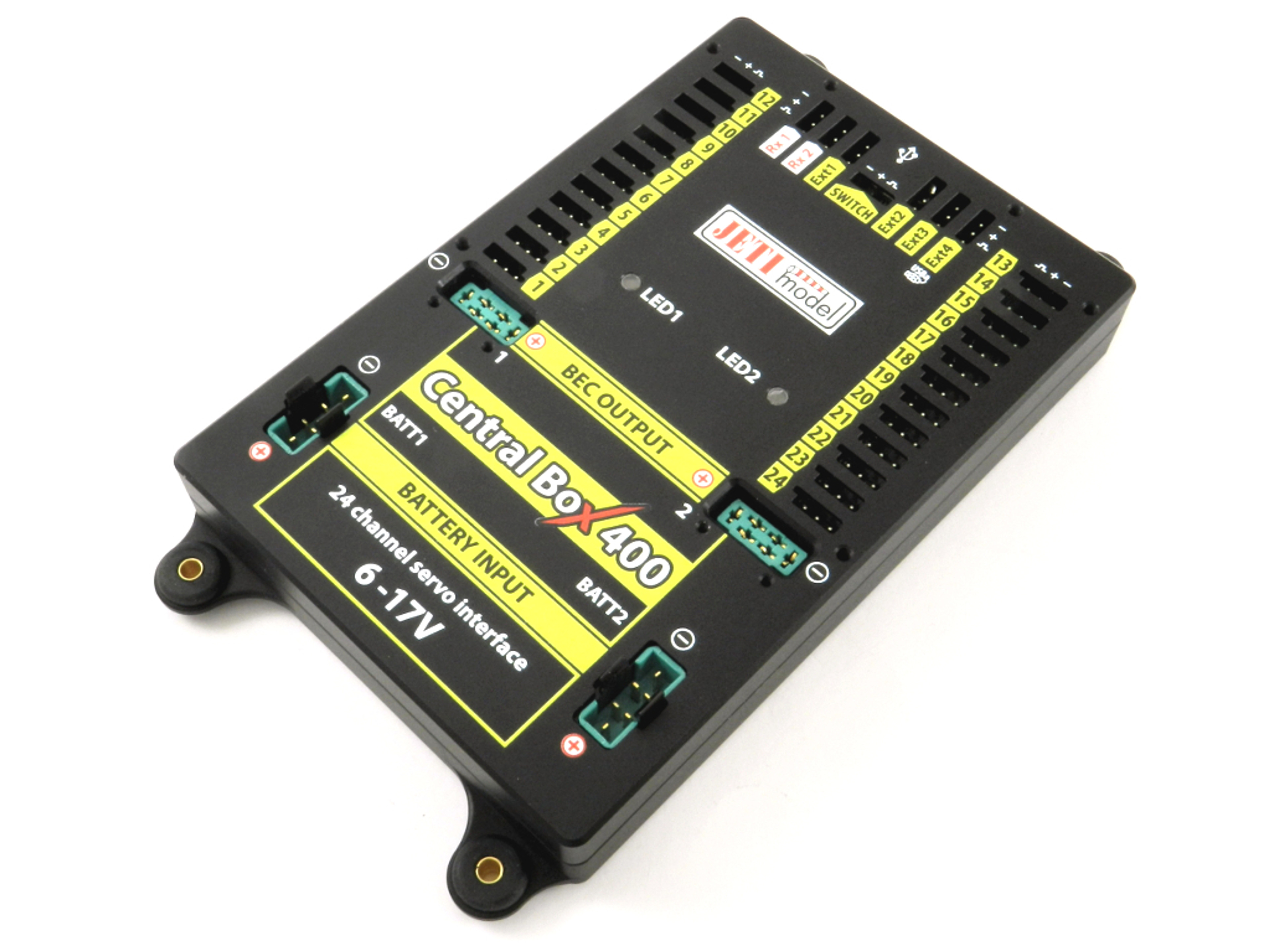

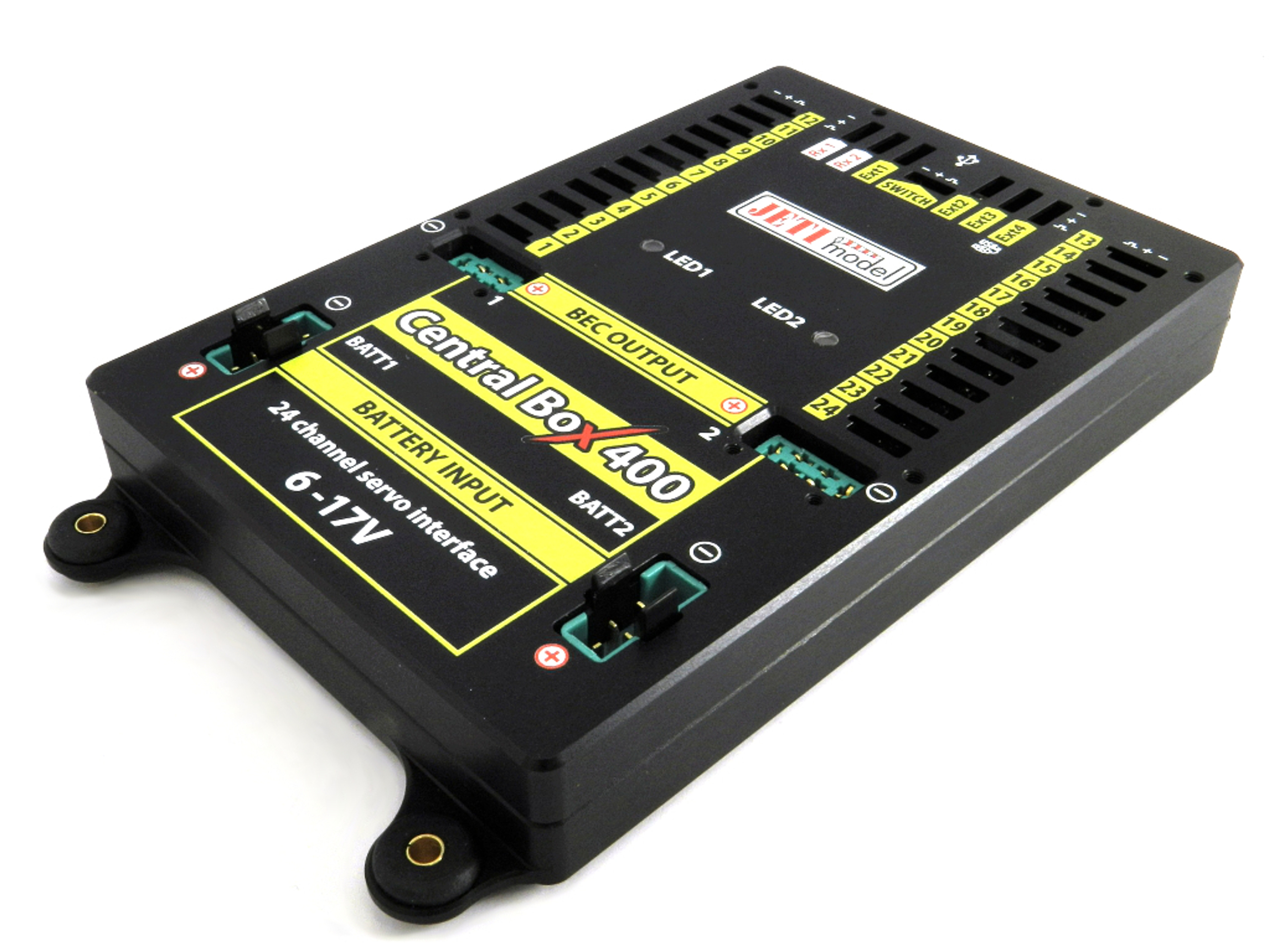

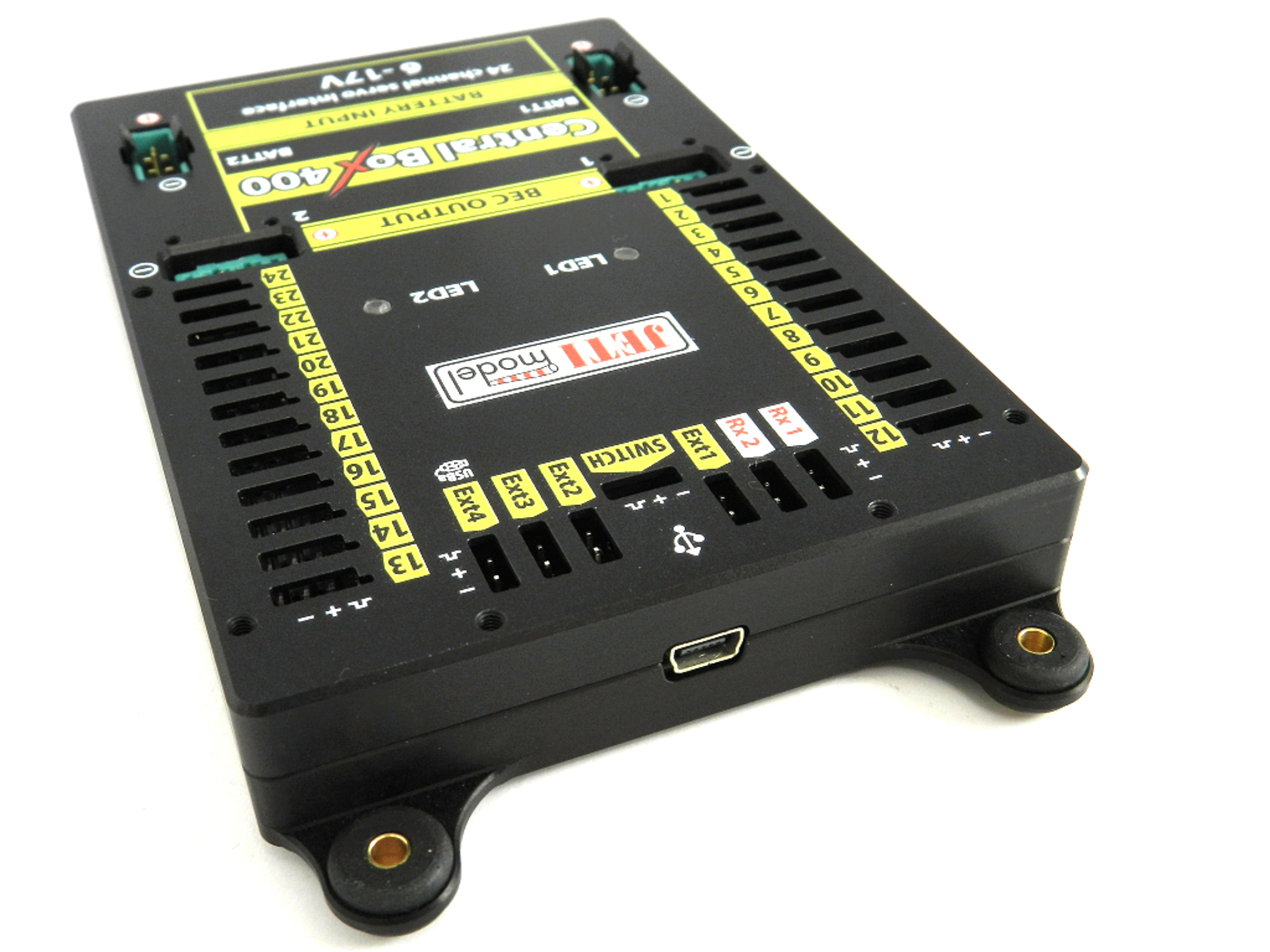

Jeti Model Central Box 400 with 2x Rsat2 and RC Switch, JCB400RSRCSW
SKU: J-CB-400-RS-RCSW
Loading...
The Central Box 400 is a switchboard designed for the complete management of servos in large to giant models with an emphasis on safety.
- Two independent high-powered BEC´s for voltage stabilisation of servos
- Overload protection on each channel
- Overload protection on Rx, Ext, and Switch outputs
- Possibility to connect up to 2 receivers with serial interface (PPM, EX Bus, UDI)
- Built-in Expander function for up to 4 sensors
- Input for magnetic switch or RC switch
- MPX battery input connectors: 2x
- Stabilised voltage output via a pair of MPX connectors
- 100Hz mode of servo outputs (10ms period)
- Supports EX telemetry (voltage, current, capacity, and temperature measurement, overload indication, ...)
- Easy settings changes via DC/DS transmitter
- Internal memory for storage of telemetry data
- USB connectivity for connection to PC
- Easy settings changes via DC/DS transmitter
- Firmware update-able
- Suitable for use with high voltage (HV) servos
- Robust metal construction with mounting holes
- LED status indication
- Each output is individually configurable (channel assignment, trim, reverse, ATV)
