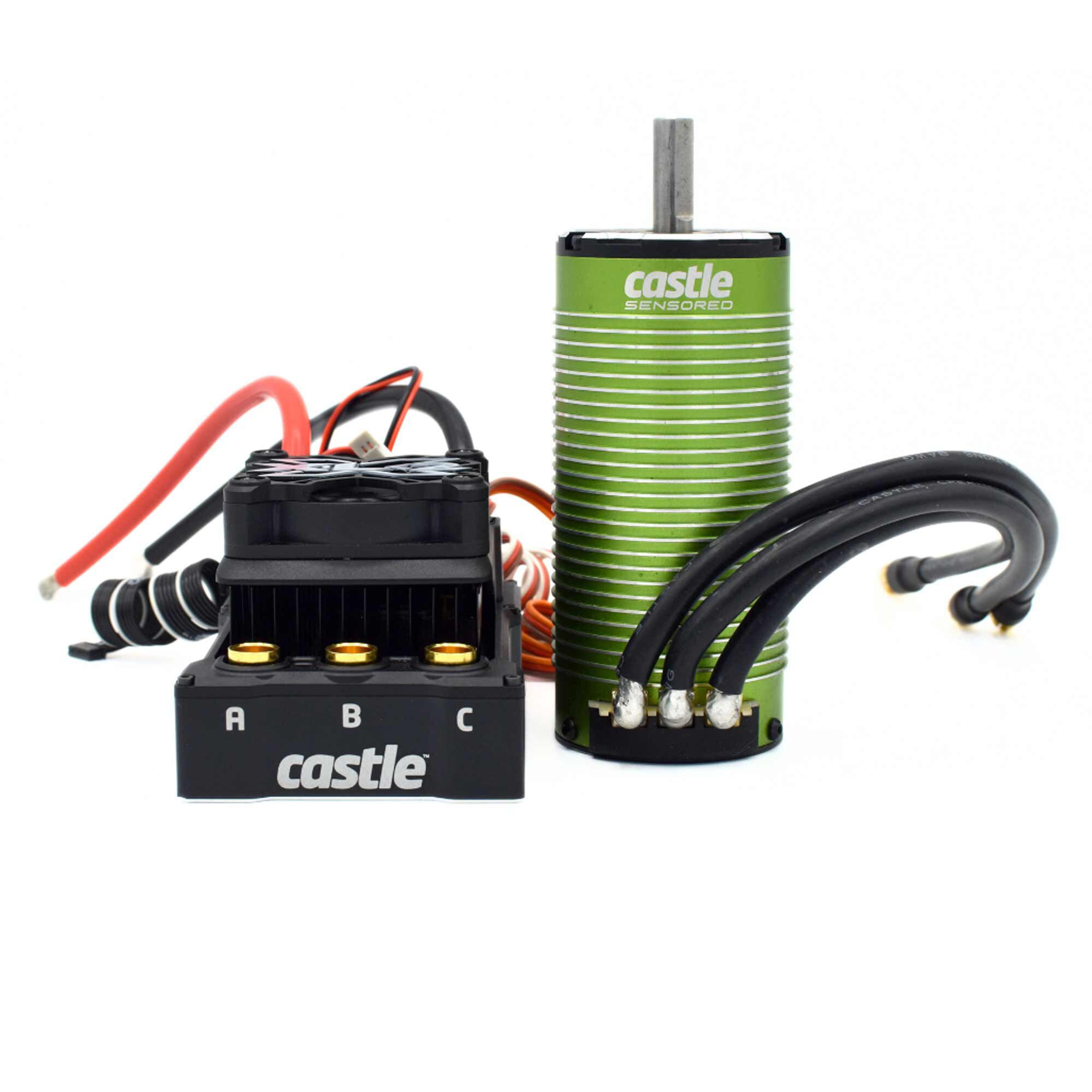

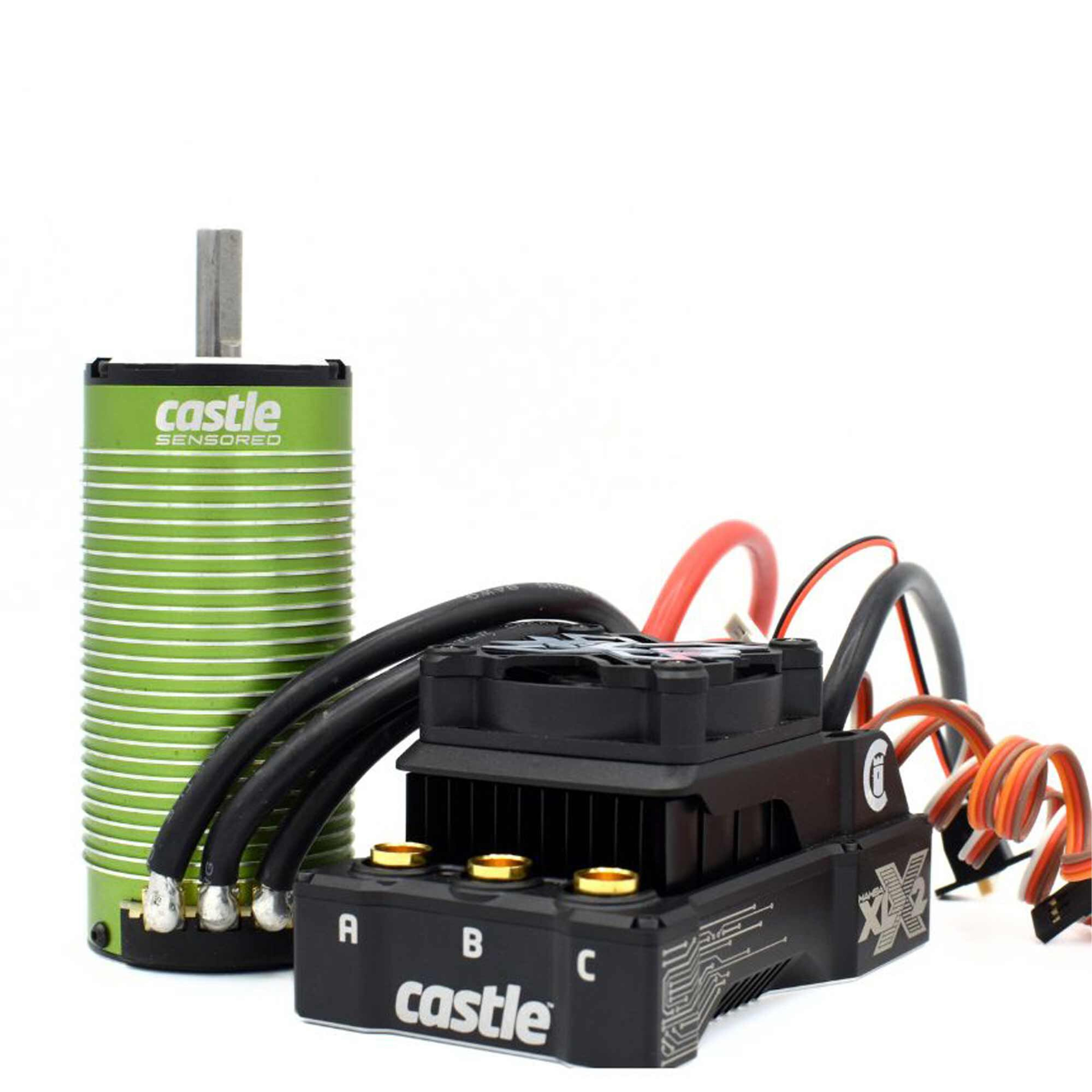

Castle Creations Mamba XLX 2 8S ESC with 1721-1260kv Motor, 010-0167-03, Final Clearance

SKU: CSE010016703
Loading...

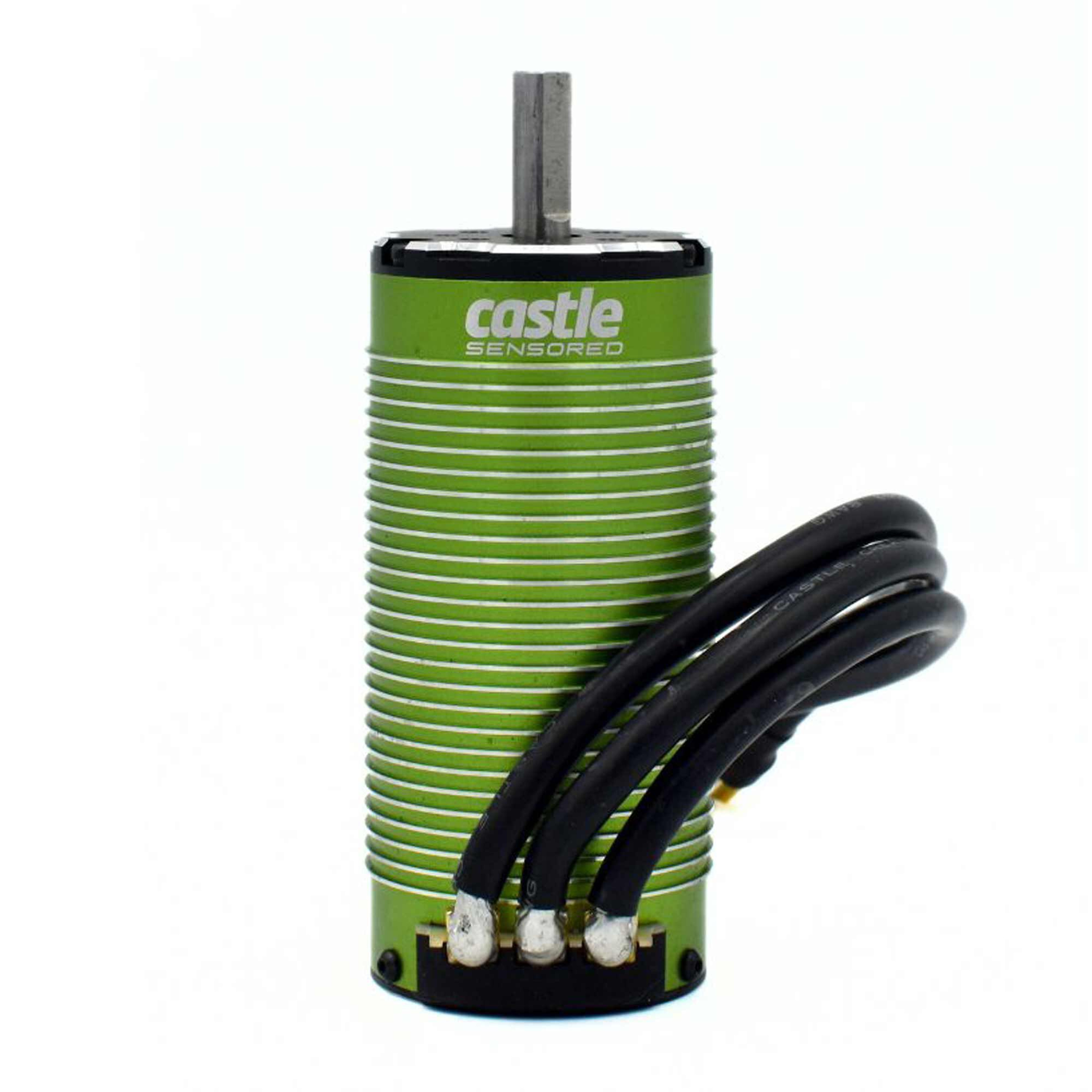

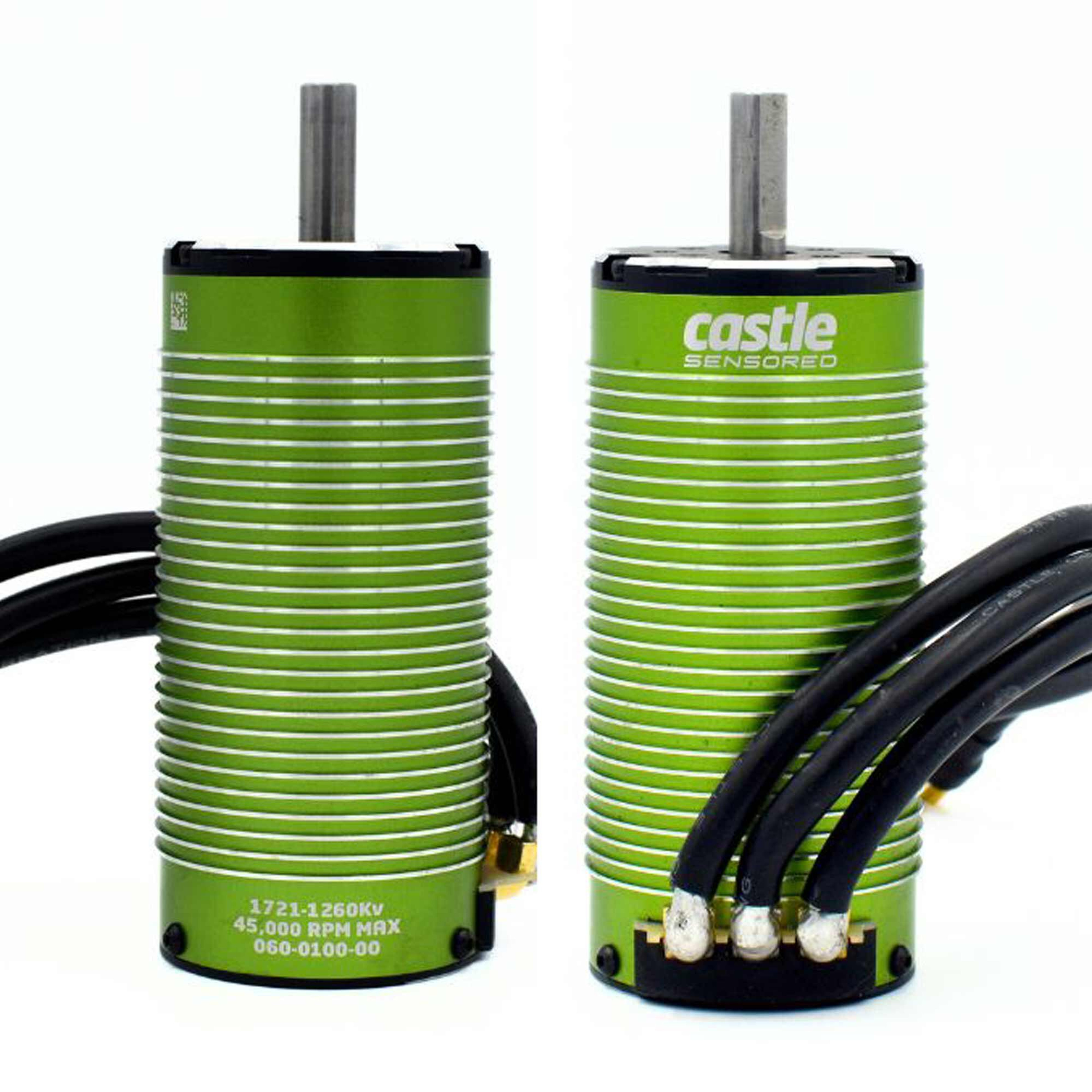

Castle Creations is thrilled to announce the latest addition to their lineup of high-performance brushless motors for surface applications - the brand new 1721-1260Kv!

  • 4-POLE 12-SLOT design boasts exceptional EFFICIENCY and produces LESS HEAT.
  • OPTIMIZED design eliminates the need for mechanical timing adjustments as sensor alignment method delivers uniform timing and torque in both directions, automatically.
  • Oversized NMB bearings and vibration dampening system ensure the longest bearing life possible.
  • High-strength, high-temperature grade neodymium sintered magnets combined with a high-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions.
  • Proprietary winding techniques produce a stator assembly that is the lowest possible resistance, resulting in a cooler running motor.
  • Input Voltage Range 3S-8S LiPo (33.6v max).
  • Sensorless, SmartSense™ and Brushed Running Modes.
  • Powerful Integrated 20A Peak Adjustable BEC (5.25V-8.0V).
  • Waterproof design for all weather conditions.
  • Data logging capability to capture and record performance data from your vehicle.
  • CRYO-DRIVE Technology minimizes the amount of time the ESC’s electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs.
  • ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to protect the electronics and promote efficient heat transfer.
  • Premium forged heatsink with elliptical fins for superior air flow and increased heat dissipation.
  • Oversized factory equipped thermally controlled 50MM cooling fan.
  • Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters.
  • Mounting holes located in bottom of aluminum case for affixing to vehicle.
  • Auxiliary wire functionality for "on-thefly" adjustments using your transmitter.
  • Audible alerts for easy diagnosis of common issues such as motor-overtemperature and low-voltage cutoff.
  • Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake.
  • Easily tune and update ESC with USB and Bluetooth™ programming options.
  • Castle Link USB programming kit (coupon included with purchase).
  • Optional smartphone-based programming with the BLINK Bluetooth Adapter (sold separately and Castle Link all available on Google Play or Apple App Store).
