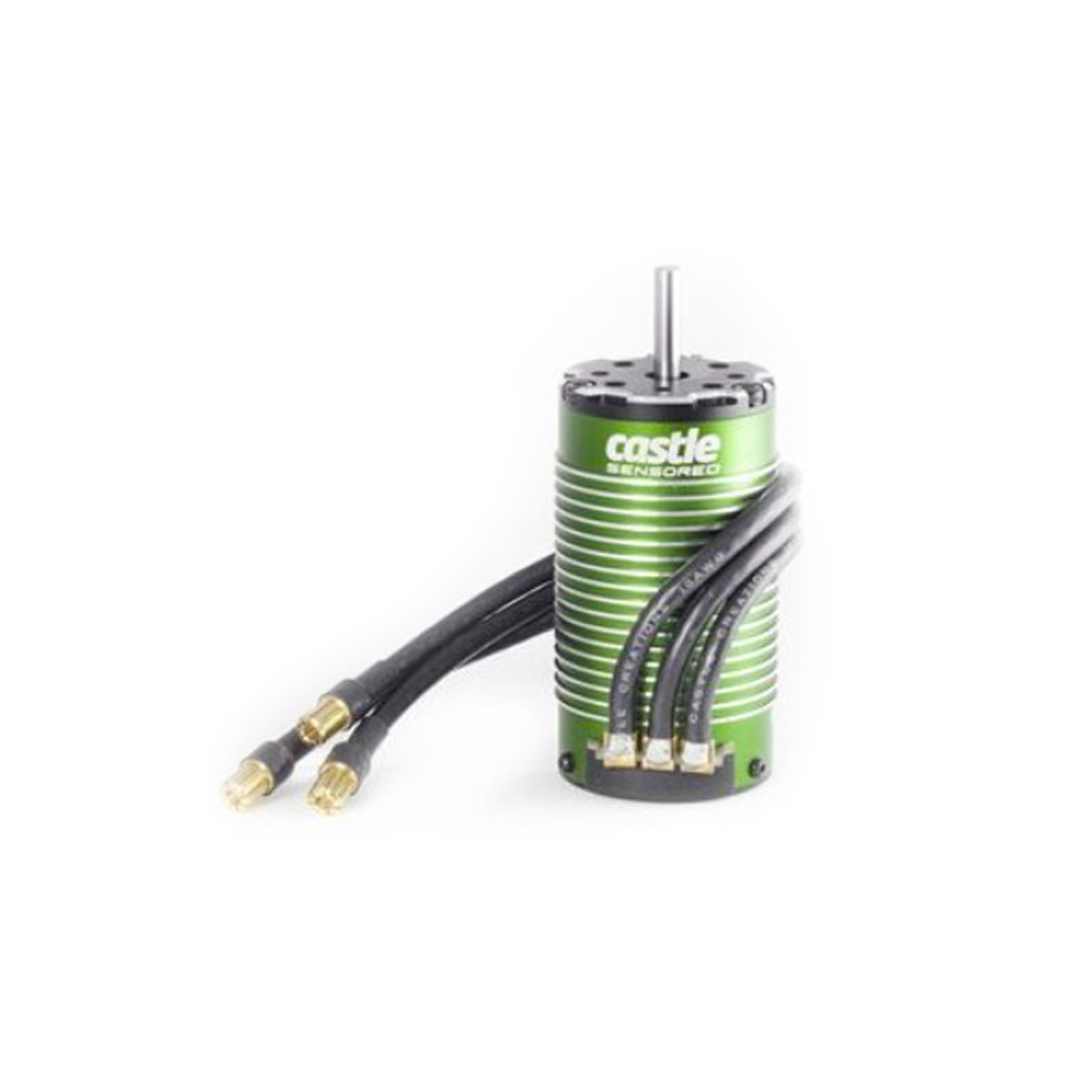

Castle Creations 1512-2650kv V2 Sensored Brushless 4-Pole Motor, 060-0114-00
SKU: CSE060011400
$343.99Out of stock
Loading...
Loading...
This updated version features a completely re-engineered rotor and stator, leading to improved magnetic flux. The result? Greater efficiency, smoother startups, lower temperatures, and extended run times!
- Input Voltage range: 2s-4s LiPo
- Redesigned rotor and stator assemblies.
- Reduced magnetic cogging, producing less residual drag brake.
- Increased efficiency, resulting in lower temperatures and longer run times.
- Smoother start-up, reducing cogging or stuttering when starting from a stop.
- Rebuildable design allows replacement of front end bell/bearing assembly or rotor/shaft assembly.
- High-Strength Kevlar Wrap and 180C Grade Neodymium Sintered Magnets
- Oversized NMB Bearings and High-Temperature, High-Purity Copper Windings
- Castle 10 AWG, High-Strand-Count Silicone-Insulated Wire with 6.5mm Bullet Connectors
- High-Performance 0.2mm Steel Lamination Stacked Stator
- Oversized, low-resistance, gold-plated solder tabs
- Sensor board with High Quality Temperature-Stabilized Sensors
- T6 Aluminum CNC Machines Front/Rear End bell
- Proudly Designed and Supported in Kansas, USA.
- Backed by Castle Creations' 1-YEAR WARRANTY
