Axial SCX10 II Raw Builders Assembly Kit, No Longer Available
SKU: AXI90104V2
Loading...

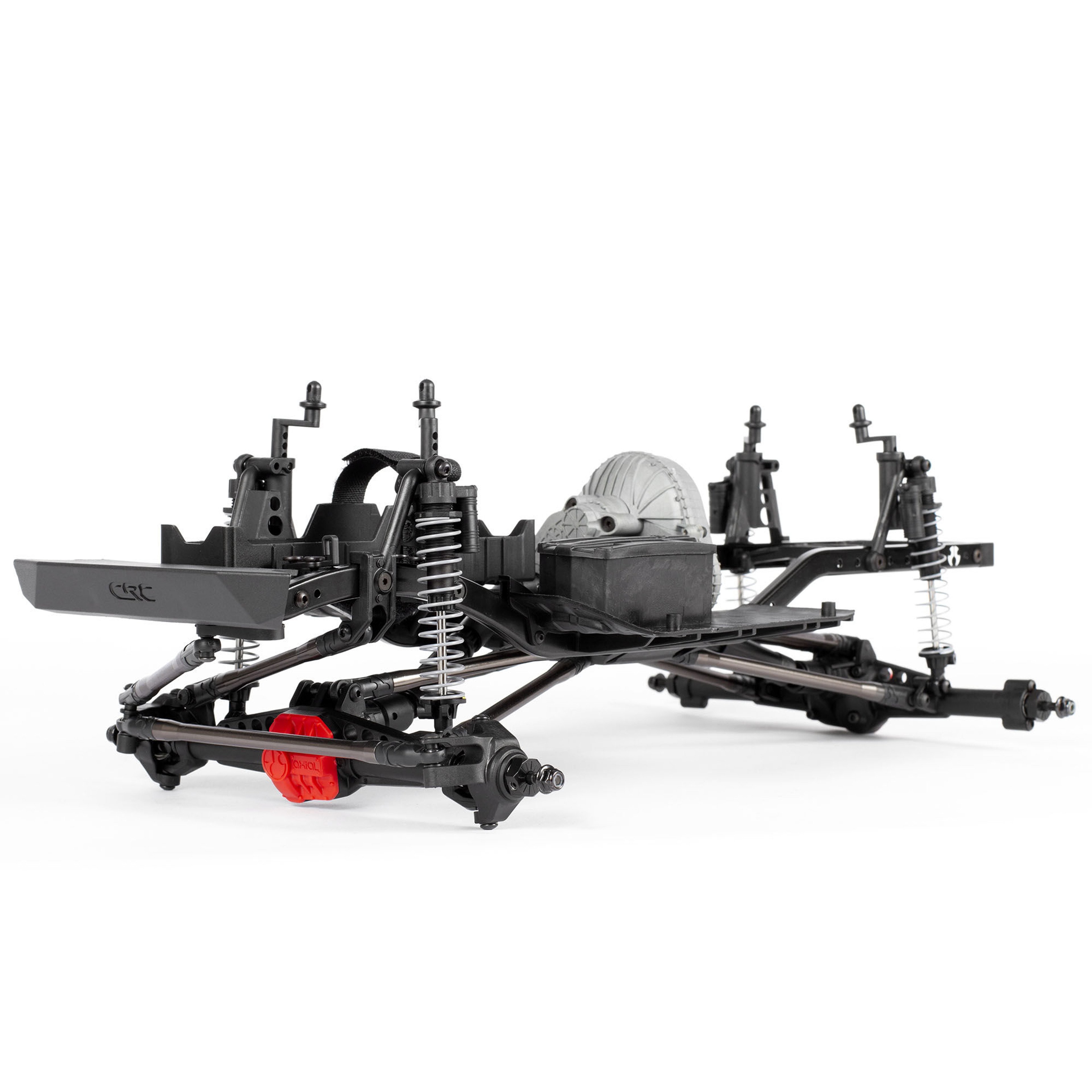

Start with your favourite scale trail chassis — the Axial® SCX10™ II. Top it off with electronics and your choice of body, tyres, and wheels. Now you’ve got a custom rig with proven performance and a look that’s all yours: the Axial SCX10 II Raw Builder’s Kit!
- Single piece axle housing for strength
- Small pumpkin for increased clearance and scale realism
- Optimized gear ratio (3.75) for reduced torque twist
- High pinion gears for added ground clearance, better driveshaft angles, and increased durability
- Scale looks on the outside — strong, all-metal Axial® gears on the inside
- Mimics a real transmission with bell housing, oil pan, and 4X4 transfer case
- 56T spur gear and 15T pinion — 32-pitch for durability
- Final drive ratio (FDR) 40.44 with a range from 33.69 - 54.15
- Efficient driveline with improved driveshaft angles to reduce stress on moving parts
- Includes a full set of ball bearings
- Universal joint axles allow up to 45 degrees of steering and provide smoother action for a higher performing, efficient drivetrain
- Hardened steel construction
- All links are metal, including the steering
- 4-Link rear suspension geometry reduces axle steer and torque twist
- Custom tapered centre – flared ends design
- Large M4 rod ends
- Gray anodized aluminium
- Servo is moved from the top of the axle onto the chassis, just as a full-size truck's steering box is located on the frame
- Enhances scale looks with proper suspension geometry
- Anodized aluminium links included with M4 rod ends
- Adjustable servo mounting system allows a wide range of servos to be used
- Properly designed suspension for nearly zero bump steer
